Phoenix Gold heeft speciale kabelsets om de dsp versterkers te intregeren in de auto ontwikkelt volledig plug en play, om volle vermogen van de DSP versterkers aan te spreken wordt aangeraden de externe 12V ook aan te sluiten.

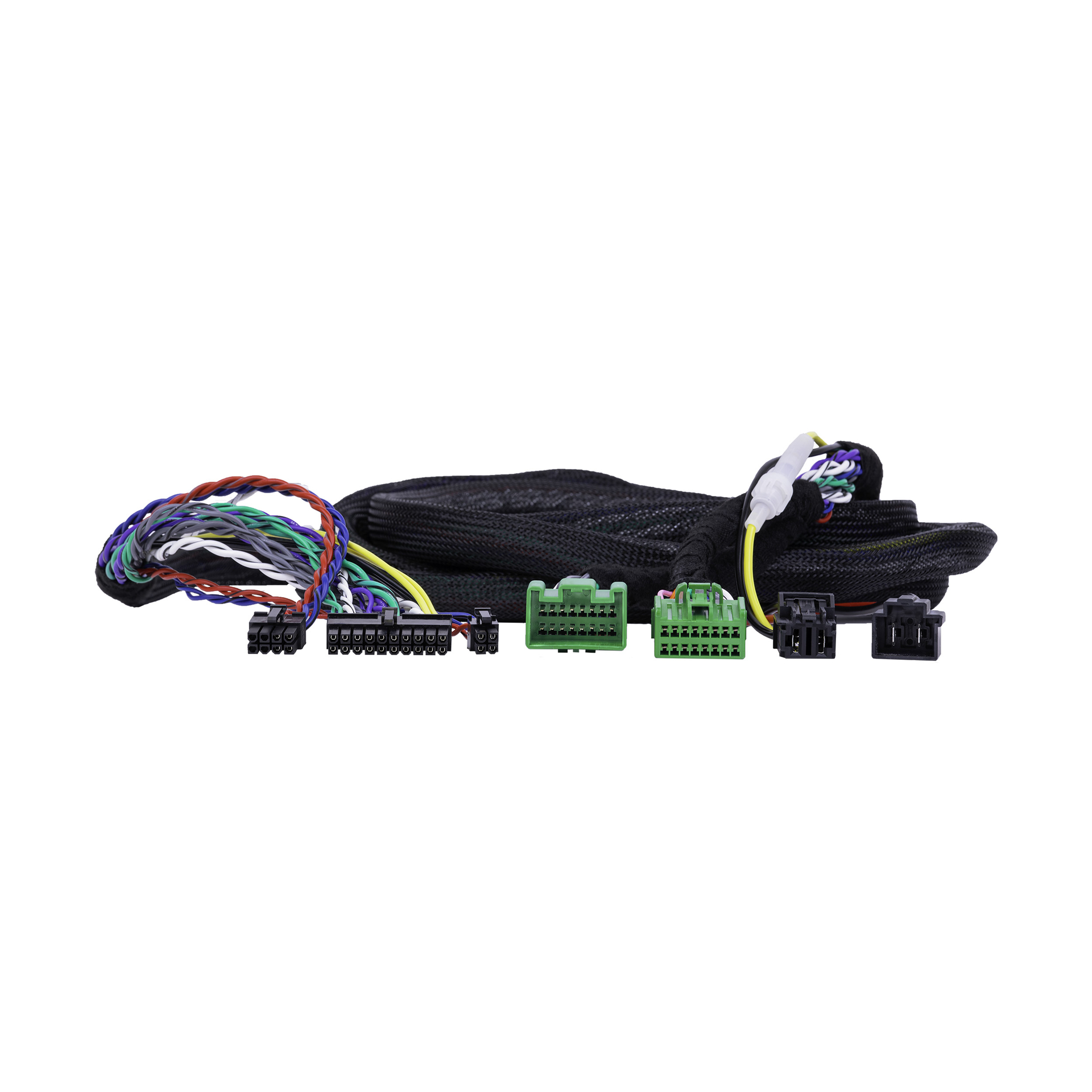

Upgrade your Volvo’s sound system with the Phoenix Gold ZDC-VOL1 harness, designed specifically for Volvo vehicles equipped with the High-Performance Sound System featuring an OEM amplifier with 5 flanges. This harness makes it simple to integrate with our ZDA6.8 DSP amplifier for a superior audio experience.
Plug & Play Installation:
1. Disconnect the connectors from the OEM amplifier under the passenger seat.
2. Attach the connectors to the ZDC-VOL1.
3. Reconnect the ZDC-VOL1 to the OEM amplifier.
4. Route the ZDC-VOL1 to the boot and connect it to the ZDA6.8* DSP amplifier.
With this quick and easy process, your physical installation is complete, allowing you to enjoy enhanced sound quality and performance.
Key Benefits:
• Enhanced Performance: The ZDA6.8 DSP amplifier delivers higher power output, increasing the dynamic range and overall volume capability of your system.
• Superior Sound Quality: Featuring Class A/B technology, the ZDA6.8 amplifier significantly improves clarity and fidelity, creating a richer, more immersive audio experience.
• Plug & Play Installation: Disconnect the OEM amplifier connector, attach it to the ZDC-VOL1 harness, connect the harness to your ZDA6.8 amplifier, and you’re ready to enjoy the upgraded sound.
Note:
If your Volvo’s OEM amplifier has 8 or 13 flanges, use the ZDC-VOL2 harness instead.
*ZDA6.8 is sold separately
Fitment
The ZDC-VOL1 harness is designed specifically for Volvo vehicles from 2018 onward. For a detailed list of compatible models, refer to our Vehicle Application List.
Compatible With
ZDA6.8 (los verkrijgbaar)
Connectors
1x 16-Pin Male Connector
1x 16-Pin Female Connector
1x 2-Pin Male Connector
1x 2-Pin Female Connector
1x 20-Pin Female Molex Connector
1x 8-Pin Female Molex Connector
1x 4-Pin Female Molex Connector
