De RD-serie zijn compacte en fraai gestylde klasse D versterkers met clean power technologie waarbij de focus ligt op stabiel en zuiver vermogen met weinig vervorming dit mede dankzij NexD high speed switching technologie waardoor deze versterkers super efficiënt zijn. Verder fraai weg te bouwen want de filters zitten boven onder een afneembaar paneel.

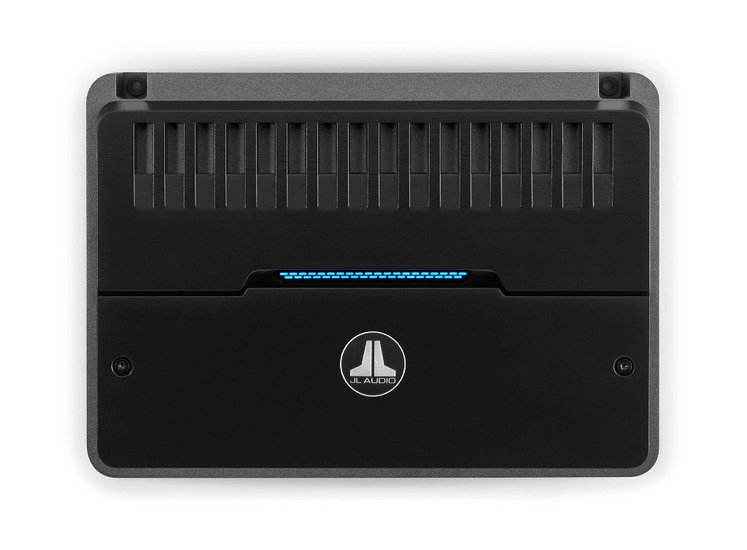

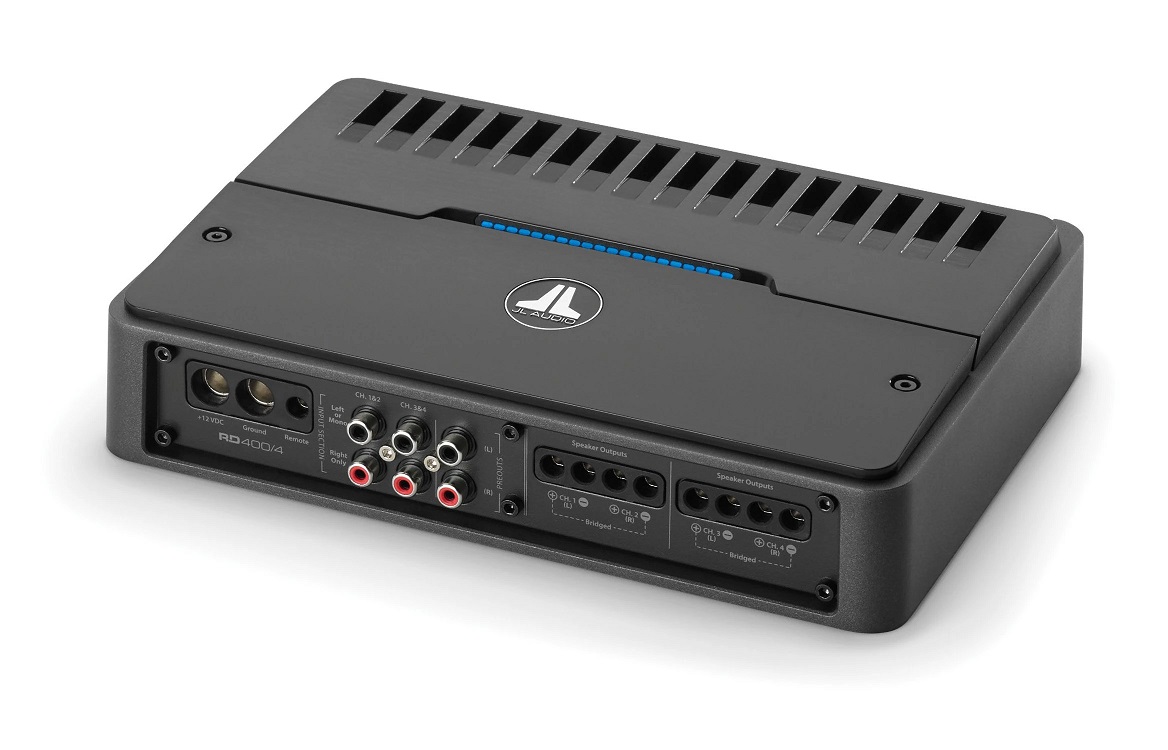

JL AUDIO RD400/4
Klasse D high end 4 kanaals versterker
Frequentie bereik: 12 - 22.000 Hz
4 x 75 watts RMS 4 ohms
4 x 100 watts RMS 2 ohms
2 x 200 watts RMS 4 ohms mono gebrugt
High & lowpass filters: 50 - 500 Hz / 12 dB
Afm: 248 x 54 x 177 mm
Extra informatie:
Utilizing our exclusive NexD™ high-speed switching technologies, the ultra-compact RD400/4 amplifier is engineered to deliver loads of audio output power, with incredible efficiency and low distortion. Don’t let its modern styling and small size fool you though, this little powerhouse churns out 100 watts of crystal-clear audio from each of its four channels into 2 ohms (14.4V, 1% THD) and is fully bridgeable, so it can be used as a 3-channel amplifier, or as a 2-channel amplifier producing a whopping 200W x 2 into 4 ohms.

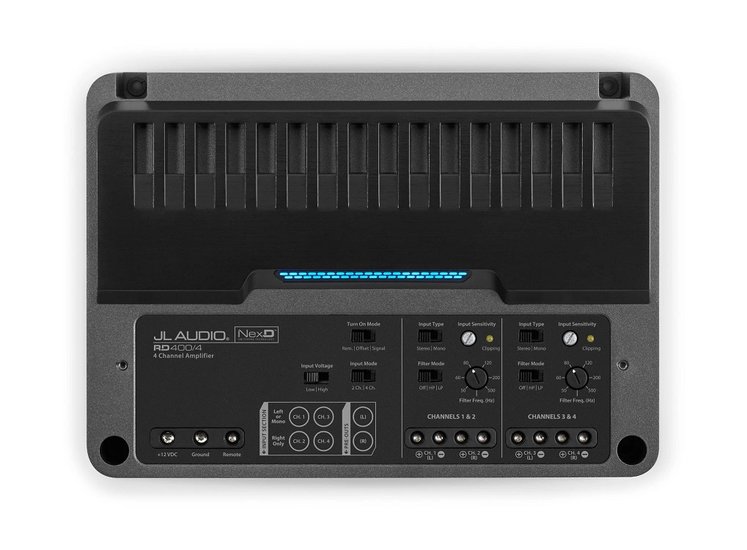

For your convenience, the RD400/4’s controls can be found on top of the amplifier, beneath a protective cover, with all connections located along one side of its chassis. Studio-grade signal processing features include high or low-pass 12 dB / octave filters (defeatable) for each channel pair, with continuously variable frequency selection from 50-500 Hz, and dual-range, differential-balanced inputs capable of accepting most input voltage levels. Automatic turn-on capability (via signal sensing or DC-offset sensing) is standard equipment, along with all-new input type switches for bridging of stereo output channels without needing to use Y-adaptors.
Onboard LED-clipping indicators are also included with your RD400/4. This all-new, innovative feature lets you easily set your amplifier’s input sensitivity settings, quickly and accurately, with no special equipment needed. You’ll also find a set of preamp outputs on-hand, so you can pass signals to another amplifier, almost effortlessly. The RD400/4 features a durable, black powder-coated finish and a top-mounted, dual-color LED light strip that reports the overall status and condition.
