De JD-serie zijn compacte en fraai gestylde versterkers met clean power technologie waarbij de focus ligt op stabiel en zuiver vermogen met weinig vervorming dit mede dankzij NexD high speed switching technologie waardoor deze versterkers super efficiënt zijn.

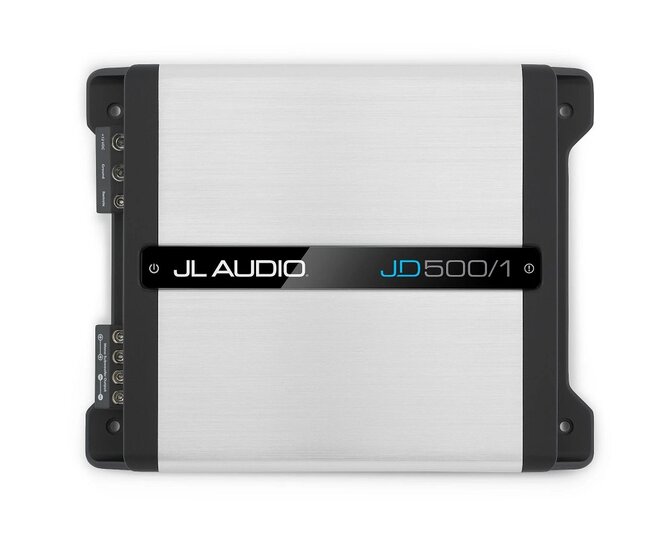

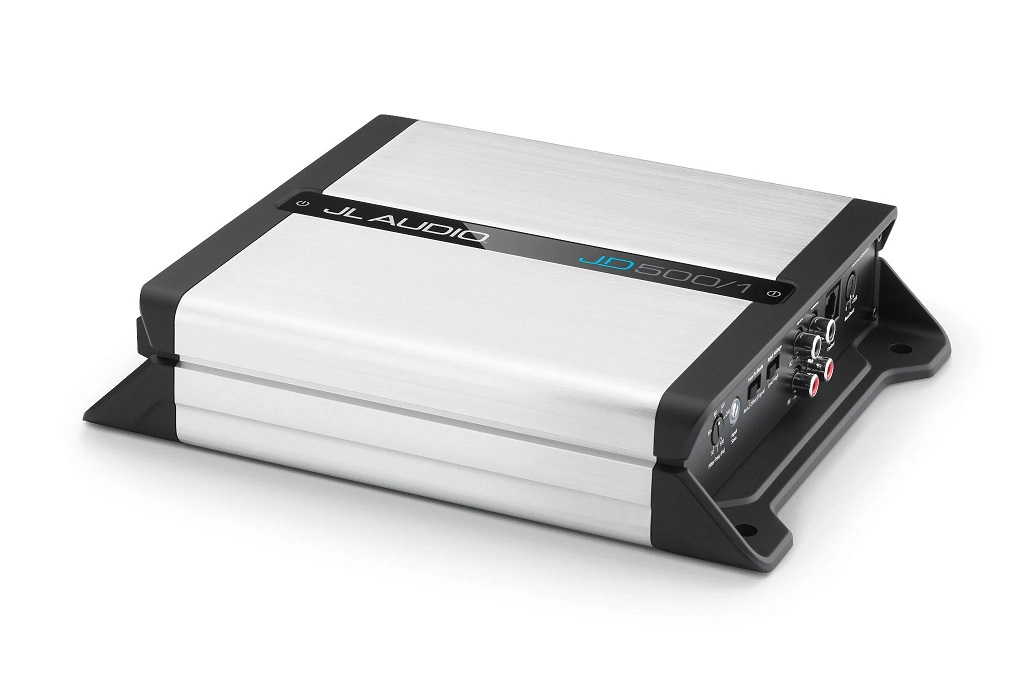

JL AUDIO JD500/1
Klasse D mono block versterker
Frequentie bereik: 7 - 500 Hz
250 watts RMS 4 ohms
350 watts RMS 3 ohms
500 watts RMS 2 ohms
Lowpass filters: 50 - 500 Hz / 12 dB
Optioneel RBC-1 bass-remote controller
Afm: 242 x 53 x 190 mm
Extra informatie:
Designed to produce a whopping 500 watts into 2 ohms (14.4V, 1% THD), the JD500/1 amplifier is a great solution for powering subwoofers in a cost-conscious system. Our proprietary NexD™ switching technology delivers large amounts of real-world power output with excellent efficiency and ultra-low distortion.

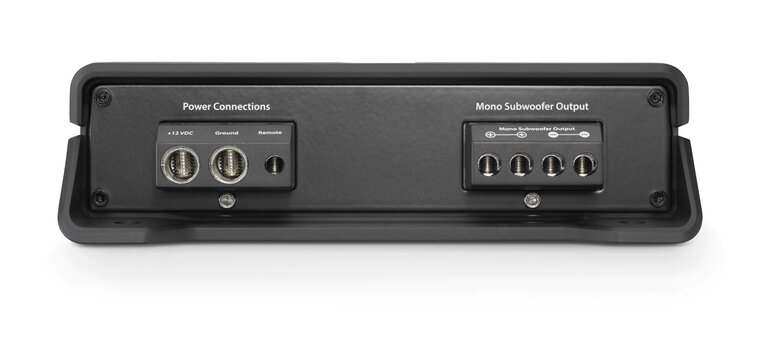

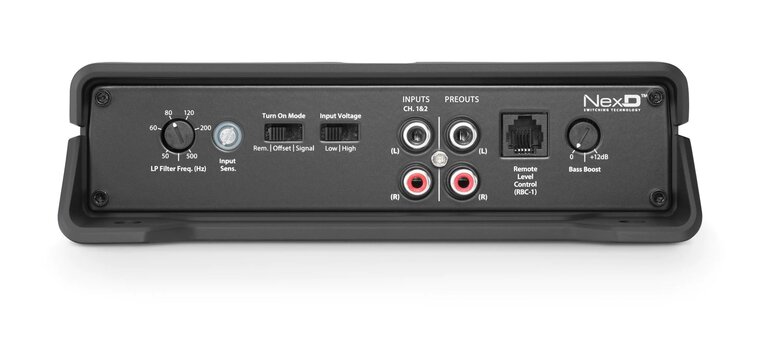

The JD500/1’s controls are located on the input panel. while the power and speaker connections can be found along the opposite end of its extruded aluminum chassis. Signal processing features include a 12 dB / octave low-pass filter, with continuously variable frequency selection from 50-500 Hz, and a variable bass boost EQ. Dual-range, differential-balanced inputs are also on-hand, capable of accepting line-level and speaker-level signals. Automatic turn-on capability (via signal sensing or DC-offset sensing) is standard, along with a set of preamp outputs so you can easily pass signals to another amplifier.
The JD500/1 is also equipped with an onboard LED-clipping indicator ring, surrounding the input sensitivity control. This useful feature lets you set your amplifier’s input sensitivity, quickly and accurately, without special equipment. With the addition of an RBC-1 remote level control (sold separately), you can control the subwoofer level from the driver’s seat.
