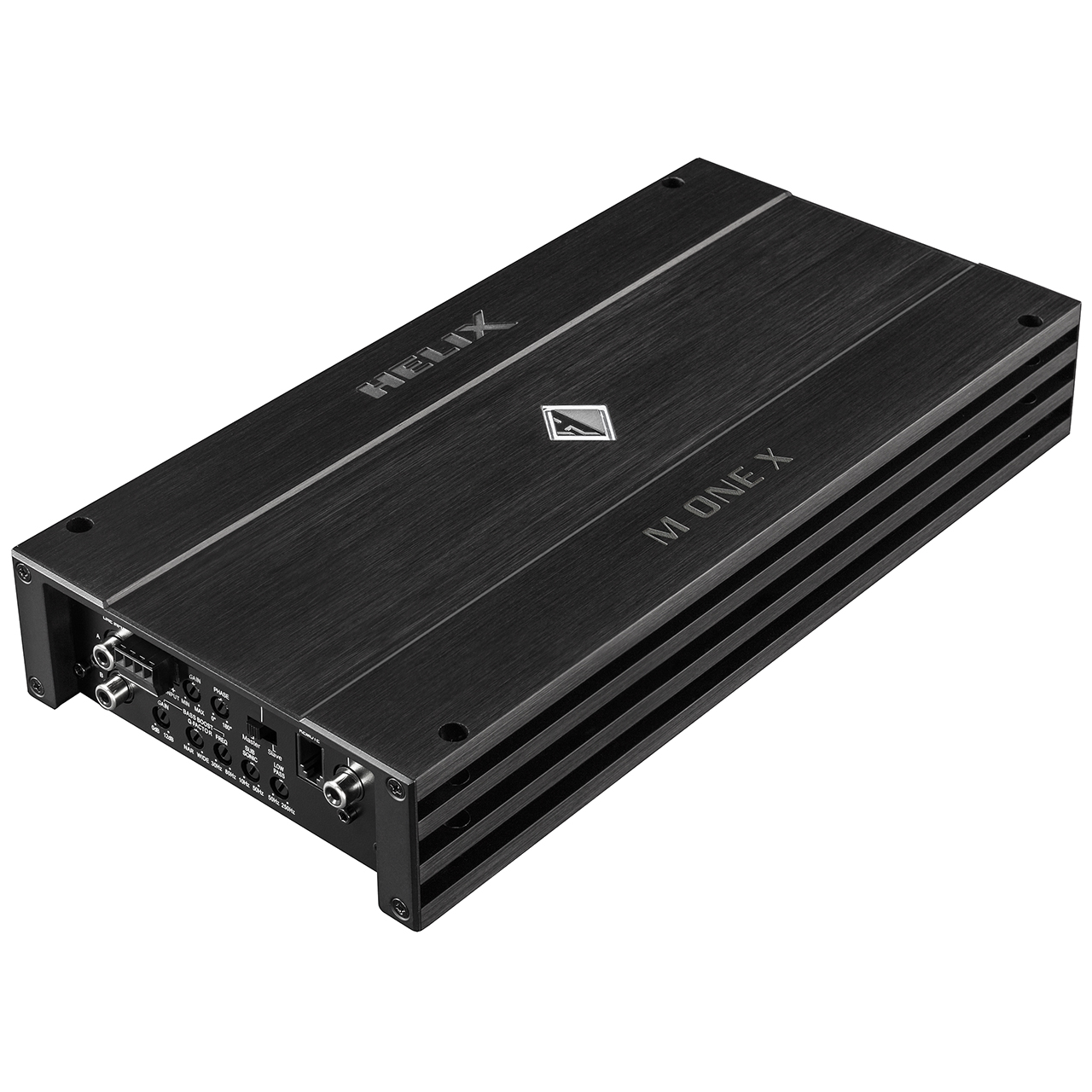

HELIX M-ONE-X
Klasse D mono block versterker
Frequentie bereik: 10 - 250 Hz
400 watts RMS 4 ohms
700 watts RMS 2 ohms
1030 watts RMS 1 ohms
Linkbaar met een 2e voor dubbel vermogen
Lowpass filtering: 50 - 250 Hz
Subsonic filtering: 10 - 50 Hz
Phase Sghift: 0 - 180 Graden
Bass boost: 0 - 12 dB bij 30 - 80 Hz
RCA & auto high level ingangen
Start-stop ready tot 6 volts drop down
Inlcusief bass-remote controller
Afm: 320 x 50 x 154 mm
Extra informatie:
Small, efficient and uncompromisingly stable - the M ONE X is a highly compact monoblock for subwoofer applications. Designed from latest Class D technology this tiny amp can easily control speakers with 1 Ohm impedance. Its current capability makes the M ONE X a perfect partner for 2 x 2 Ohms subwoofers, where both voice coils are connected in parallel. And for even more output power, two M ONE X amplifiers can be combined to one single powerhouse – thanks to the TwinPower Link.
In addition a comprehensive and stunningly practical feature set leaves nothing to be desired. Last but not least installation will be a no-brainer due to the minimal dimensions.
Features:
Small footprint Class D amplifier with up to 1,180 Watts RMS output power @ 1 Ohm for easiest combination with all 2 x 2 Ohms subwoofers connected in parallel
Start-Stop capability down to 6V supply voltage
Smart highlevel input with ADEP circuit and Auto Turn-On function
Integrated, active crossover with lowpass, bass boost, subsonicand phase control
TwinPower Link for connecting two amplifiers in bridged mode
Bass remote control for volume adjustment
Low heat dissipation thanks to extraordinary efficiency
