1+ Absolute Spitzenklasse Car & Hifi uitgave 05/2024
High end DSP versterker, Beste Product & EMV-Tip.

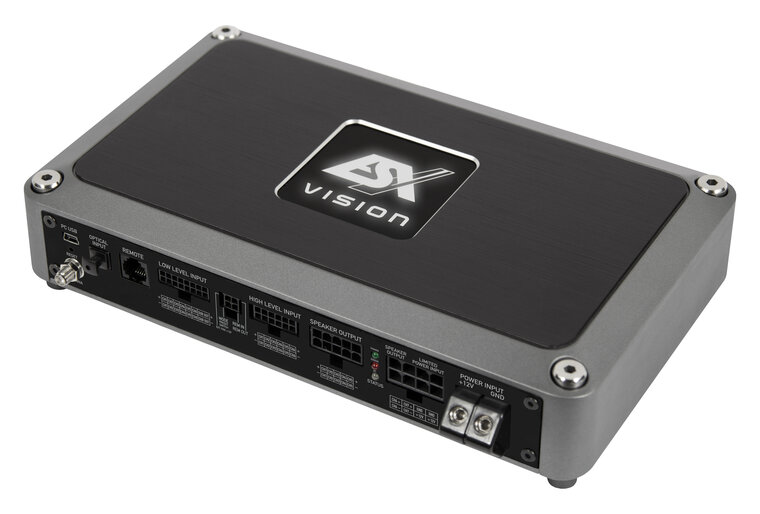

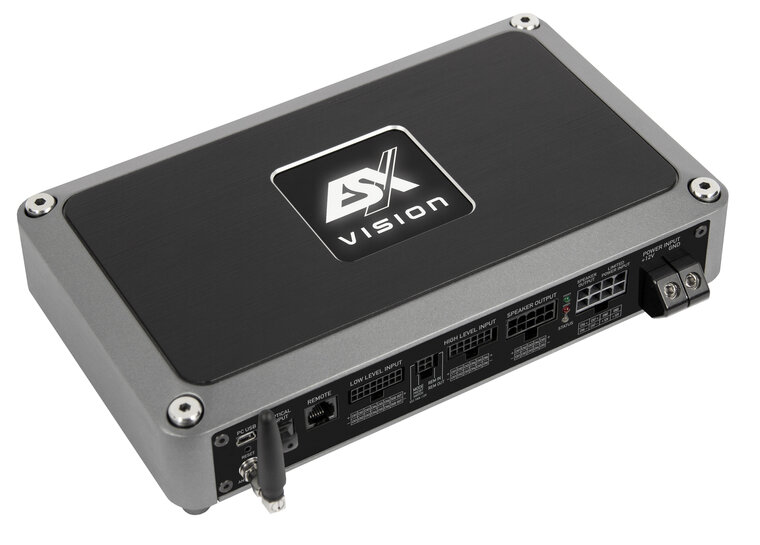

ESX VISION ELITE VE900.7SP
Class D 7-Channel Amplifier with Digital 8-Channel Sound Processor
5 x 100 Watts RMS at 4 Ω + 2 x 200 Watts RMS at 2 Ω
5 x 104 + 2 x 111 watts RMS getest 4 ohms (2 x187 watts RMS 2 ohms)
Frequency Range 5 / 45.000 Hz
Signal-to-noise Ratio (A-weighted): 106,5 dB
THD 0,005% at 1 Watts RMS, 0,003% at 5 Watts RMS
Operating Voltage 7.5 ~ 17 V
Dimensions 250 x 50 x 150 mm

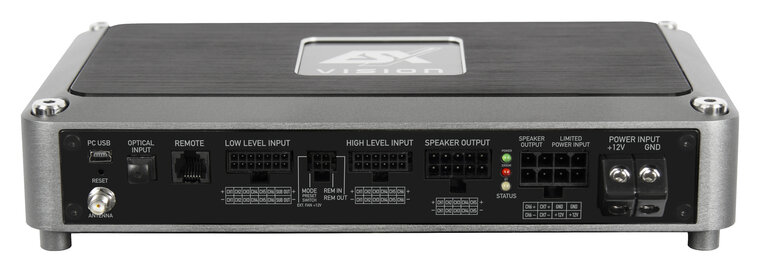

Inputs:
6 x RCA, balanced (via Molex Plug)
6 x High Level Input (via Molex Plug)
1 x Optical Stereo Input, S/PDIF 192 kHz, 24 bit

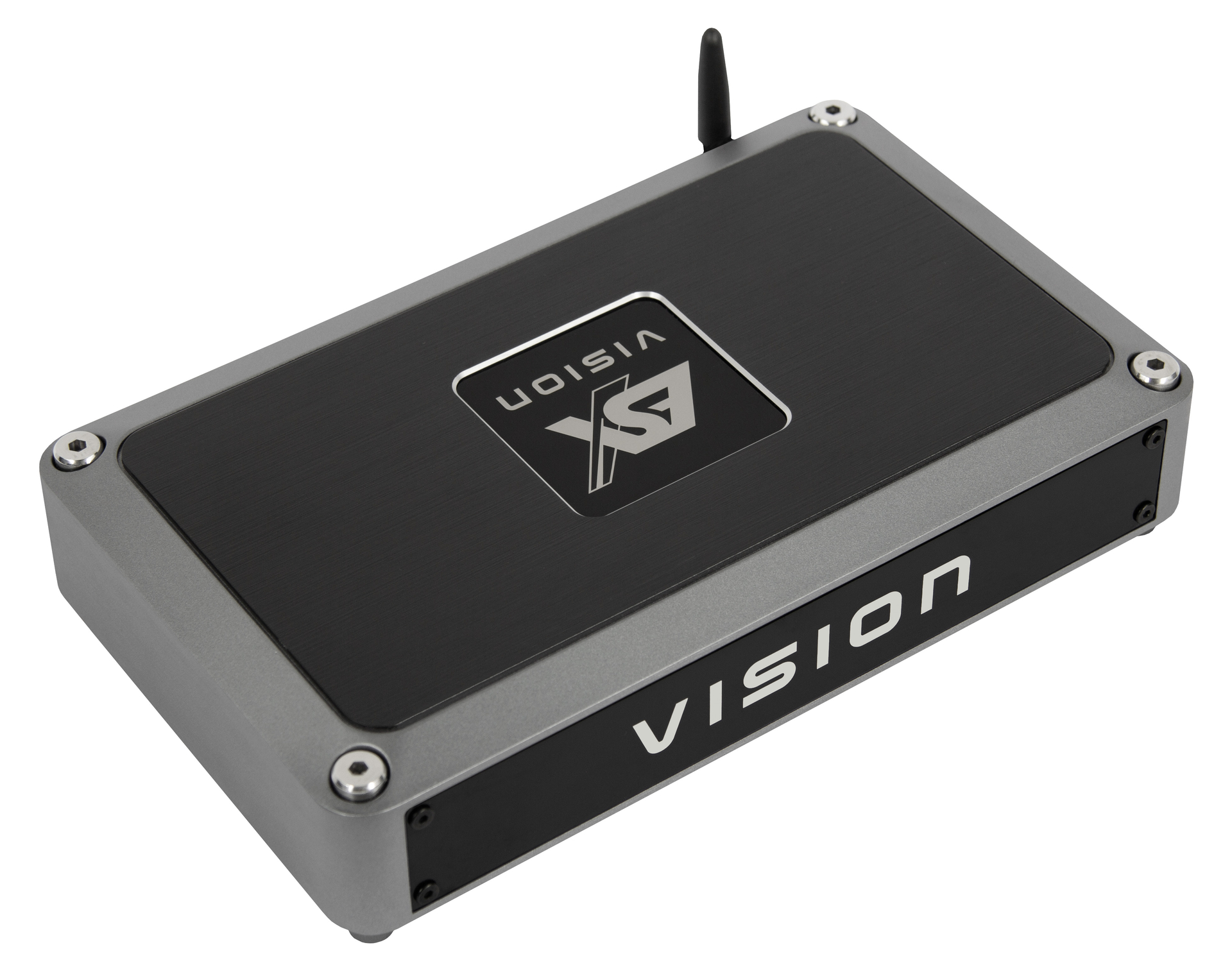

1 x Bluetooth® Stereo Input via Audio Streaming
1 x USB Type B Socket for PC Software
1 x RJ45 Input for Remote Controller
1 x Terminal incl. REM IN/OUT & Mode Preset Switching Input
Input Sensitivity Low Level 500 mV ~ 6 V
Input Sensitivity High Level 2 ~ 15 V or 15 ~ 40 V (switchable)
Input Impedance Low Level 10 kΩ
Input Impedance High Level 10/150/600 Ω (switchable)
Auto Turn-On Function DC / VOX / OFF
Outputs:
5 x Amplified Speaker Output (via Molex Plug)
2 x Amplified Speaker/Subwoofer Output (via Molex Plug)
1 x Subwoofer Output (RCA via Molex Plug)
1 x Switching Output for External Fan +12V
