De Forza versterker serie is voorzien van de nieuwste D-CLASS audiophile sound techniek. Deze versterkers zijn ontwikkelt om samen te werken met de AF BIT systemen en worden hierom ook wel AF Companion versterkers genoemd.

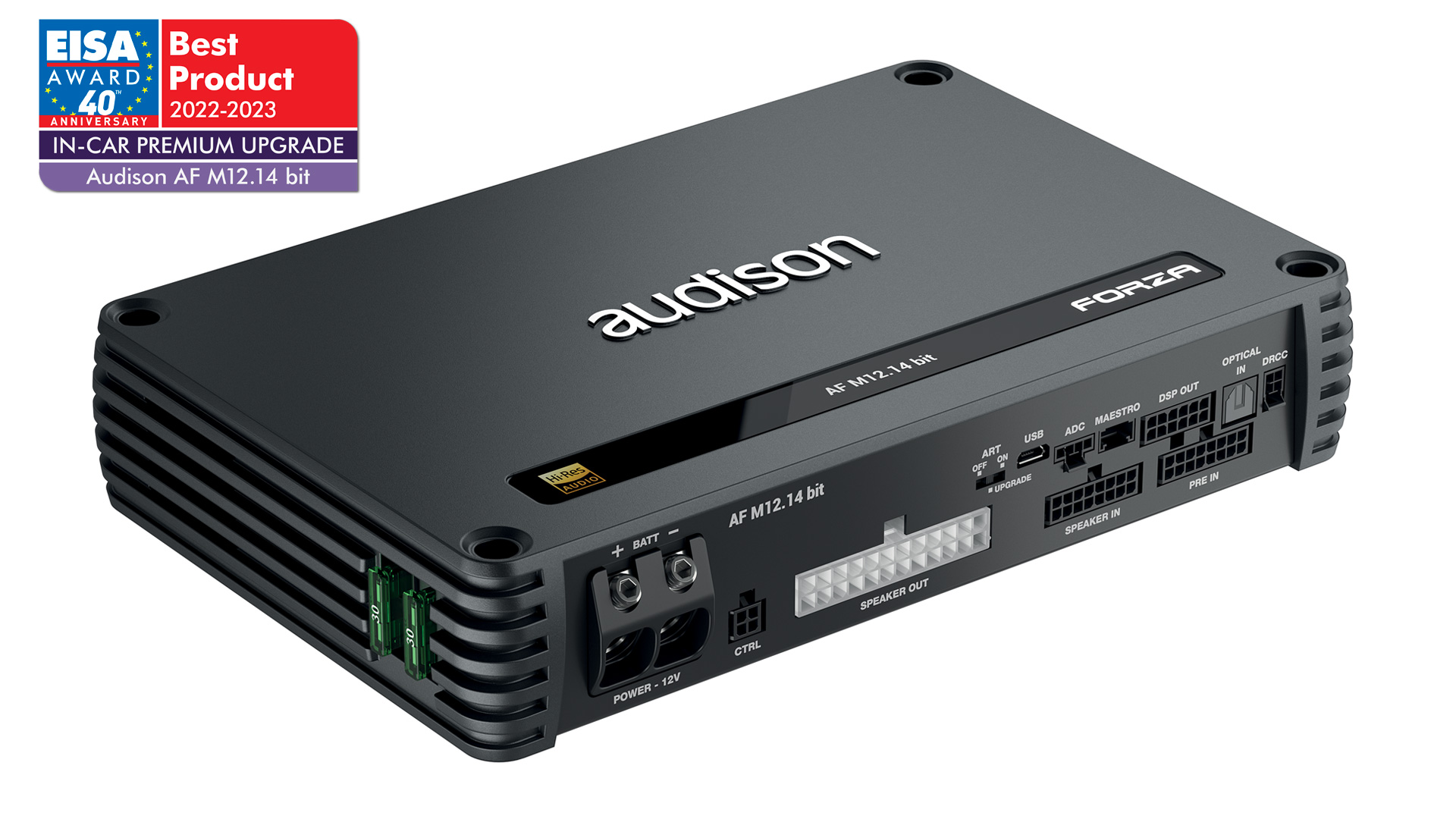

AUDISON FORZA AF-M12.14 BIT
12 kanaals klasse D versterker
Ingebouwde 14-kanaals DSP Analog Devices
Frequentiebereik: 10 - 42.000 Hz (Hi-Res)
12 x 60 watts RMS 4 ohms
12 x 90 watts RMS 2 ohms
6 x 180 watts RMS 4 ohms mono gebrugd
Afm: 240 x 47 x 156 mm
Extra informatie:
AUDISON FORZA, THE NEXT LEVEL OF OEM INTEGRATION AND TUNING
More Power
More Information
More Control
More Inputs
More Speed
More Tools
More Capabilities
More Guidance
More Flexibility
all in one state-of-the-art platform!
AUDIOPHILE SOUND YOU EXPECT FROM AUDISON
AF M12.14 bit boasts twelve high-fidelity amplified channels 60 x 12 at 4Ω*, 90W x 12 at 2Ω* with the audiophile sound of the latest generation Audison D-Class technology. Higher switching frequencies, steeper filtering, and higher-tolerance components deliver sound above and beyond the expectation of Class D – in an amazingly compact package! This is combined with native DSP working at 24 bit/96 kHz, extending the audio band up to 40 kHz and earning the coveted High-Resolution certification. Bridging channel pairs results in 180 x 6 @4Ω*, guaranteeing flexible and powerful performance. Support for the Audison B-CON’s Absolute Volume function guarantees maximum bit depth, even with wireless connections!
*Output Continuous Power (RMS) @14.4 VDC, 1% THD, all channels driven.
NEXT-GENERATION TUNING CAPABILITIES FOR MAXIMUM CONTROL
Audison’s completely-new bit Drive PC software can analyze, route, and correct the signal in completely new ways – now you can measure, mix, and finally tune the sound with one powerful tool! The new Graphical User Interface simplifies every control and function, integrating acoustic measurement, and ensuring efficient tuning and great sound! The Acoustic RTA is integrated into the equalizer graph and is compatible with your USB microphone or sound card. The Final EQ function allows final equalization without damaging the delicate left/right frequency relationships. The two processed preamp outputs are in addition to the twelve amplified channels, allowing Forza’s DSP section to manage a larger system easily.
ADVANCED OEM INTEGRATION CAPABILITIES

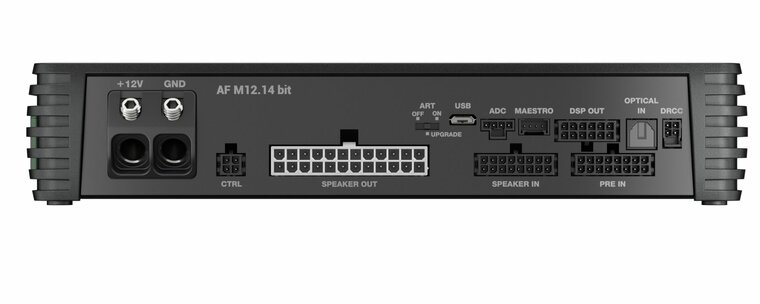

Forza’s eight analog inputs, plus an optical Toslink digital input, support total connectivity even with the most complex OEM systems. If more analog inputs are required, the optional F4IN expansion card adds four additional analog input channels! If a Coaxial SPDIF or a second Toslink SPDIF input is needed, the optional F2O expansion card can be used. Audison’s classic de-EQ process is joined by de-Time and de-Phase capabilities, enabling sound restoration in nearly every OEM system., The electrical signal analysis ensures proper integration and correction for each input and output channel. The built-in universal speaker simulation technology (USS) yields maximum compatibility with any OEM Source, preventing muting or instability.

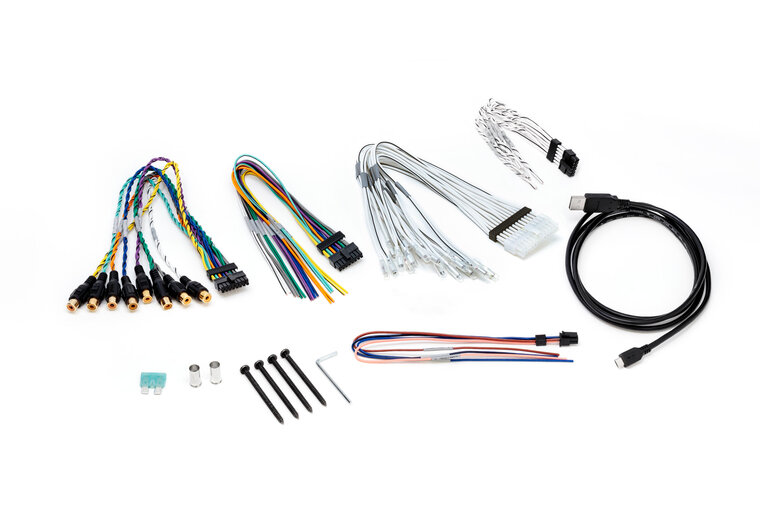

AF M12.14 bit includes a set of four high-quality cables supplied with a protective printed strip placed upstream of the Molex connectors to increase the resistance to torsion:
Pre-In with 8 stereo RCAs interconnection for after-market sources with PRE-OUT outputs
Speaker-In with 8 pairs of labeled cables for OEM sources with high-level outputs
Speaker-Out with 12 labeled cables to connect the amplifier to the speakers
Dsp-Out with 6 labeled cables to connect the amplifier to one or more companion amplifiers
Forza Control cable with 2 wires for remote power-on and remote out signal, plus 2 wires for functions programmable on bitDrive software.
