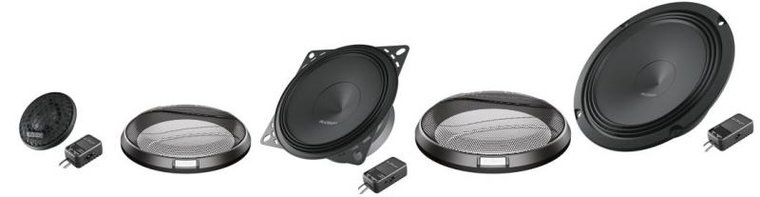

Audison APK163 luidspreker set 16,5 cm 3-weg compo 125 watts RMS

De PRIMA serie componenten luidspreker systemen van Audison "Italy" zijn opgebouwd uit hoogwaardige tweeters AP1 met daarbij APCX compacte crossovers met 2-position installing voor de tweeters (+2dB voor OEM of 0 dB voor A-Pillar) en zijn perfect als Upgrade voor vervanging van OEM luidspreker systemen.

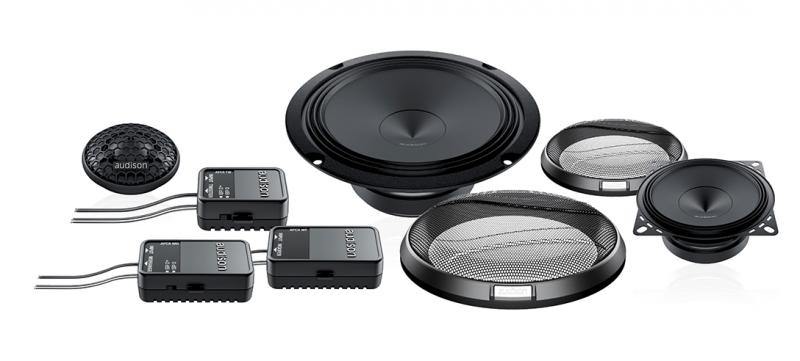

Audison APK163

16,5 cm 3-weg compo luidspreker set
165 mm woofer / 10 cm middentoon / 26 mm tweeter
Frequentie bereik: 50 - 20.000 Hz
125 watts RMS / 375 watts MAX
Gevoeligheid: 93,5 dB
Impedantie: 4 ohms
Inbouwopening: 141 mm
Inbouwdiepte: 56 mm

Extra informatie:

1 AP 1 tweeter with 26 mm diameter diaphragm combined with a wide-roll surround provides maximum efficiency and reduced resonance frequency.

2 AP 1 tweeter with acoustic lens designed to compensate for and fine tune the in-car frequency response anomalies in the 10kHz - 13kHz bandwidth caused by restrictive OEM grilles in critical OEM placements.

3 Dedicated crossovers for each component: APCX TW compact tweeter passive crossover optimised for OEM Integration featuring an attenuation switch (0 dB, +2dB) to tune the in-car response according to different installation conditions; APCX MD midbass crossover and APCX WF woofer crossover. The passive crossovers boast very reduced dimensions and are optimised for OEM Integration.

4 AP4 midbass with extended frequency response, combined with high efficiency.

5 AP 6.5 woofer with 32 mm pure copper voice coil, for high power handling and outstanding low frequency control.

6 AP 6.5 woofer and AP 4 midbass with water-repellent treated paper cone, featuring a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel R&D Scan Vibrometer.

7 AP 6.5 woofer and AP 4 midbass with reduced mounting depth, providing ease of installation in OEM placements.

8 AP 6.5 woofer and AP 4 midbass with TPU (Thermoplastic Polyurethane) surround, featuring the exclusive shallow “Triple Wave” profile, for maximum excursion linearity.

9 AP 6.5 woofer and AP 4 midbass with compact basket, protected by abrasion-resistant and scratch-proof coating, the motor affixed with damping epoxy adhesive.

10 AP 6.5 woofer with high current fast-on terminal with double contact on positive and negative poles for high flexibility and quick connection. The terminal features temperature resistant plastic cover, protecting it against accidental short circuits.

11 Developed with the KLIPPEL suite. * Grille included
